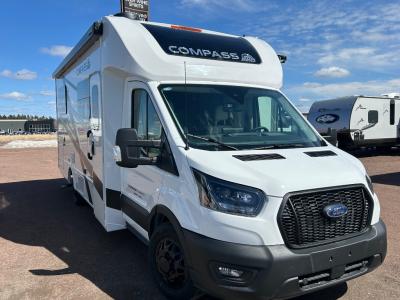

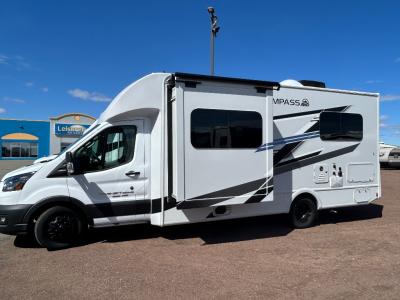

Thor Motor Coach Compass AWD 24KB Motor Home Class B+ For Sale

•

  Take a Virtual Tour

  Thor Motor Coach Compass AWD Class B+ motorhome 24KB highlights:

  • Two Twin Beds with King Conversion
  • Skylight Above Cab
  • Jack-Knife Slide
  • Convection Microwave with Air Fryer



  The perfect coach for two whether you are a couple or not! This Compass AWD model features a set of twin beds that can easily convert to a king bed if you like.  Enjoy the added space thanks to a slide out jack-knife sofa with a removable pedestal table. This table is handy for dining when you are stopped. You will appreciate the kitchen amenities for light meals and snacks while on the road, plus the onboard bath offers a 27" x 27" radius shower, toilet, and sink which is convenient as well. There are also two 32" Smart TVs in this coach, one over the side entry opposite the seating in front, and one back in the sleeping area at the foot of the roadside twin bed.  A built-in skylight offers the ability to stargaze in the front of the coach on a clear night.



  The Thor Motor Coach Compass AWD Class B+ gas motorhome is small but mighty! It includes all-wheel drive, and it is built upon a Ford Transit chassis, 3.5L V6 Eco Boost turbo gas engine, and Ford ten-speed automatic overdrive transmission. The Ford safety features provide excellent care while driving, and you can stay connected to your Compass AWD with the FordPass Connect. The power patio awning with LED lights can be moved out into position with just one touch on your cell phone thanks to the Rapid Camp+ multiplex control system. You will have a 100W solar panel with controller, a 15,000 BTU air conditioner, a Winegard ConnecT 2.0 Wi-Fi/4G/TV antenna, and a tankless water heater as some of the top electrical and plumbing features.





  Have a question about this floorplan?

  Contact Us

  Specifications

  Sleeps	2
  Slides	1
  Length	25 ft 10 in
  Ext Width	7 ft 6 in
  Ext Height	11 ft
  Int Height	6 ft 8 in
  Interior Color	London Fog, Seapearl, Charcoal Matrix, Travertine 3
  Exterior Color	HD-Max Standard; Dress Blues, Black Ice. Full-Body Paint Options; Brilliant Carbon, River Ranch, Seashell Grey
  Hitch Weight	5000 lbs
  GVWR	11000 lbs
  Fresh Water Capacity	31 gals
  Grey Water Capacity	27 gals
  Black Water Capacity	20 gals
  Furnace BTU	19000 btu
  Generator	4.0 kW Gas
  Fuel Type	Gasoline
  Engine	3.5L V6 EcoBoost Turbo
  Chassis	Ford Transit
  Horsepower	310 hp
  Fuel Capacity	25 gals
  Wheelbase	178 in
  Available Beds	Twins Convert to King
  Torque	400 ft-lb
  Refrigerator Type	12V Dual Door
  Convection Cooking	Yes
  Cooktop Burners	2
  Shower Size	27" x 27"
  Number of Awnings	1
  LP Tank Capacity	40 lbs
  Water Heater Type	Tankless
  AC BTU	15000 btu
  Basement Storage	45.4 cu. ft.
  TV Info	LR 32" Smart TV, BR 32" Smart TV
  Awning Info	16' 6" Power w/Integrated LED Lighting
  Gross Combined Weight	15000 lbs
  Shower Type	Radius
  Electrical Service	30 amp
