Floorplan - 2015 Coachmen RV Apex Ultra-Lite 249RBS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+18-
Sleeps 6
-
1 Slides
-
Two Entry/Exit DoorsFront Bedroom
-
28 ft 3 in Long
-
4,730 lbs

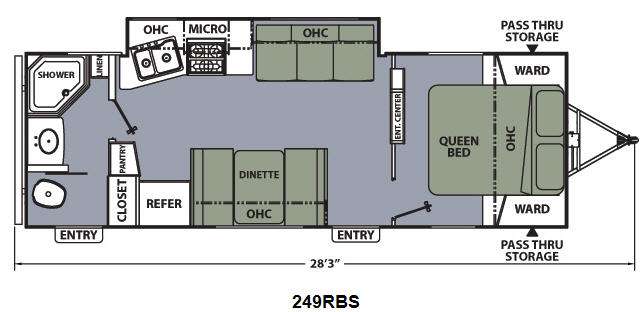

249RBS Floorplan
Specifications
| Sleeps | 6 | Slides | 1 |
| Length | 28 ft 3 in | Ext Width | 8 ft |
| Ext Height | 10 ft 2 in | Hitch Weight | 480 lbs |
| GVWR | 7480 lbs | Dry Weight | 4730 lbs |
| Cargo Capacity | 2750 lbs | Fresh Water Capacity | 50 gals |
| Grey Water Capacity | 35 gals | Black Water Capacity | 35 gals |
| VIN | 5ZT2CXPB8FA004959 |
Description
This double entry Apex ultra lite model 249RBS by Coachmen RV features a rear full bath and a large slide-out which creates a spacious interior.
Step into the front main entry and find a private front bedroom featuring a comfy queen bed with plenty of storage space both above the bed and with two bedside wardrobes. There is an entertainment center on the living room wall just outside the bedroom which can easily be viewed from both the sofa and booth dinette.
Enjoy cooking in the spacious kitchen featuring a refrigerator, 3-burner range and microwave oven and double kitchen sink. There is also a pantry plus overhead cabinets for storage.
The rear of the trailer features a complete full bath with angled shower, sink and linen cabinet, and a private toilet area with access from a second outside door. The perfect feature when you are outside so you don't have to run through the entire trailer to get to the bathroom.
There is also no shortage of storage space. You will find plenty of overhead cabinets, wardrobes, and a pantry inside. You will also enjoy the convenient front pass-thru storage compartment for all of your extra outdoor gear and much more!
Features
Interior & Decor
- Glazed Grace Cherry cabinetry
- Overhead bedroom cabinets
- Sealed edge countertops
- Congoleum Grand Canyon flooring
- Mini-blinds – throughout
- Pedestal dinette table
- Large oversized booth – U-shaped dinette
- 68" Residential sofa (Most models)
- Energy efficient LED interior lighting
- Hardwood mortise & tenon cabinet door frames
- Stile & rail cabinet front construction
- LP leak alarm
- Fire extinguisher
- Smoke alarm
- Carbon monoxide detector
- Furnace – forced air/ducts per floorplan
- 55 Amp power center (35 Amp on 151RBX)
- Outside receptacle GFI
- Patio light
- TV antenna with cable TV hookups
- AM/FM/CD player
- 2 Outside speakers
- Ducted air conditioner 239RBS & above
- Detachable power cord
- Microwave
- 3-Burner cooktop with oven
- Double door refrigerator (N/A 151RBX)
- Power/lighted range hood
- Brushed nickel hardware
- Stonecast double bowl sink
- Power bath vent
- 6 Gal. Gas/Elec. DSI hot water heater
- Water heater bypass valve
- Demand water pump
- Medicine cabinet
- Below floor low point drains
- Foot flush toilet
- Tub surround
- Glass shower door – 34" neo-angle showers
Sleeping
- Reversible plush comforter (Select models)
- Evergreen sleep mattress
- Bunk shelves – double over double
- 13.5 Roof A/C
- Power awning (N/A 151RBX)
- Spare tire kit with spare tire
- 4 Stabilizer jacks
- LP port
- Double 20# LP tanks
- Rubber roof
- Fully laminated aluminum framed radius rubber roof – R-11 (7-1/2′ Wides)
- Fully laminated aluminum framed radius rubber roof – R-14 (8′ Wides)
- Vacuum bond Azdel/fiberglass sidewalls (Additional R-2)
- Laminated aluminum framed fully insulated sidewalls – R-9
- Laminated aluminum framed floor – R-11
- Gutter rail
- Dead bolt lock
- Tinted safety glass radius windows
- Radius entrance door
- Radius thumb latch baggage doors
- I-beam chassis construction
- Corrosion resistant powder coated frame
- Dual battery tray
- Heated/enclosed holding tanks (8′ Wide models only)
- Break-away switch
- Schwintek slide room system (N/A Deep slides)
- Lighted pass-thru storage
- Double entry step
- EZ lube axles
- Nitro filled radial tires
- Gray exterior fiberglass
- Exterior door side cable hook-up
- Aluminum rims
Optional Apex Elite Package (Mandatory on 8' Wides)
- Hard valances with side curtains
- Night shades
- Dual sink cover
- AM/FM/CD/DVD stereo
- 24" LED TV (7-1/2′ Wides)
- 32" LED TV (8′ Wides with entertainment center)
- Access doors under dinette
- Ground effects (Metal skirting & ABS fender skirts – N/A 151RBX)
- Slam latch doors at pass thru (Most models)
- Black tank flush
- Magnetic door catches
- Stone guard
- Hot/cold outside shower
- Bottle covers
- Apex fleece blanket – Sofa models
- Painted fiberglass front cap with LED lighting
- Blue awning LED rope lighting
- Power tongue jack with light
- Swing-away assist handle at main entry
- Black metal refrigerator panels
- Hi-rise kitchen faucet with pull-out sprayer
- * The Apex Elite Package is required with the Summit Package.
- Frameless dark tint windows
- 15,000 BTU roof air conditioner
- Tri-fold Destination Hide-a-Bed sofa
Interior and Decor
- Glazed Grace Cherry cabinetry
- Overhead bedroom cabinets
- One-piece sealed edge countertops
- Congoleum Grand Canyon flooring
- Mini-blinds throughout
- Pedestal dinette table
- Large oversized booth/U-shaped dinette
- Hardwood mortise & tenon cabinet door frames
- Reversible plush comforter (Select models)
- Stile & rail cabinet front construction
- 2" Thick insulated floor
- LP leak alarm
- Fire extinguisher
- Smoke alarm
- Carbon monoxide detector
- Outside receptacle GFI
- Patio light
- Detachable power cord
- Microwave
- Black appliances
- Brushed nickel hardware
- Power bath vent
- Water heater bypass valve
- Demand water pump
- Hand-crafted wood medicine cabinet
- Below floor low point drains
- Foot flush toilet
- 20# LP tank
- Rubber roof
- Vacuum bond Azdel/fiberglass sidewalls (Additional R-2)
- Laminated aluminum framed fully insulated sidewalls – R-9
- Gutter rail
- Dead bolt lock
- Tinted safety glass radius windows
- Radius entrance door with window
- Radius thumb latch baggage doors
- Corrosion resistant powder coated frame
- Dual battery tray
- Break away switch
- Stone guard
- Pass-thru storage
- Double entry step
- EZ lube axles
- Nitro filled radial tires
- Vacuum bond Azdel fiberglass walls
- Vacuum bond laminated crowned roof/ceiling
- Aluma-cage construction
- Welded aluminum framed floor
- Schwintek slide room system
- Insulated floor with seamless decking
- High efficiency LED interior lighting
- 2 Outside speakers
- Stabilizer jacks (4)
- TV antenna with cable hookups
- DSI water heater
- Microwave
- 4.0 Cu. ft. 2-way refrigerator
- 2 burner cooktop
- AM/FM/CD Stereo
- Skylight in bath
- Evergreen sleep mattress
- Gray exterior fiberglass
- LP port
- 13.5 BTU roof air conditioner
- 20,000 BTU direct vent furnace
- Manual awning
- Spare tire and carrier
